CorridorDesigner (see
http://www.corridordesign.org)
includes ArcGIS procedures that allow you to develop a linkage design
that best support movement by multiple focal species. In 2010,
CorridorDesigner added new procedures that allow you to develop
corridors that provide for continuity of land facets (recurring units of
relatively uniform topography and soils); these are intended to provide
a linkage that will provide wildlife connectivity during and after
climate change. The ArcGIS portion of these Land Facet tools is
available on both the Corridor Designer page and at
http://www.jennessent.com/arcgis/land_facets.htm. In both cases, the
procedures produce a design that represents “the best we can do” from an
ecological perspective.

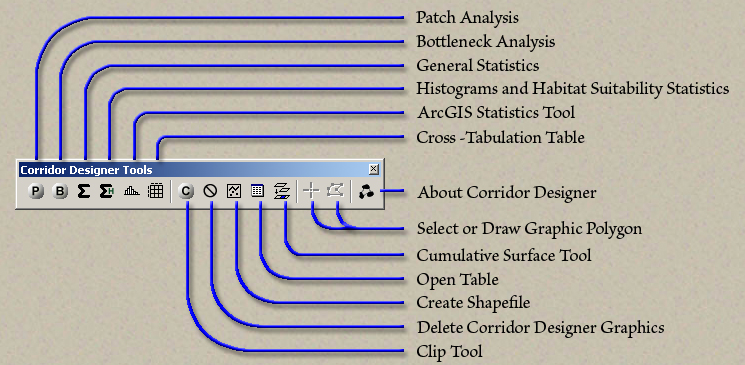

Here we offer a new set of tools, called Corridor
Evaluation Tools, that allow you to describe various traits of one or
more corridor polygons. Corridor evaluation tools are needed for two
reasons.
 | First “the best we can do” might not be very good.
Least-cost modeling procedures always produce least-cost corridors –
that is, lands that provide lower resistance to animal movement (or
better continuity or interspersion of land facets) than any
alternative. However, these corridors may still be pretty lousy.
Analysts need to provide good honest assessments of how well the
linkage design serves each focal species or land facet. |
 | Second, the linkage design ignores feasibility.
County planners, city planners, and conservation investors aften want
to consider alternatives that minimize dollar expenditures or that
provide opportunities for other economic activities. For instance, the
linkage design may include many small parcels (which have high
transaction costs) or landowners who do not want to sell conservation
easements. At the same time, there may be an opportunity to conserve
an alternative swath of land that does not have these problems.
Planners and investors need to know: How does this alternative compare
to the optimal linkage design? Is it almost as good, half as good, or
markedly inferior? |
The Corridor Evaluation Tools allow developers,
conservation groups, and planning agencies to create an alternative
corridor by simply drawing it on the screen, selecting parcels of
interest, or pointing to any polygon. They can then describe both the
optimum corridor and any alternative corridor(s) to the optimum design
in several ways:
 | A list of the longest distances between consecutive
patches of breeding habitat in each corridor polygon for each focal
species |
 | Graphs depicting narrowness and length of
bottlenecks in each corridor |
 | Frequency distributions of habitat quality for each
focal species in each corridor |
 | Descriptive statistics for any raster or vector
attribute of a corridor. |
 | Cross-tabulations of any two raster or vector
attributes of a corridor. For example, a decision-maker may want a
cross-tabulation of parcels based on parcel size and distance to paved
road. If a polygon has many small parcels close to roads, that
corridor would be much more difficult and expensive to protect than a
corridor polygon consisting of large parcels far from paved roads.
|
 | Circuit-theory metrics that characterize total
resistance across all possible cells within each corridor (McRae.
2006. Evolution 60:1551–1561). |
With these descriptors, decision-makers can compare
and make choices among alternative corridor designs. You may wonder why
Corridor Designer doesn’t develop a linkage design that recognizes costs
and other constraints from the outset, rather than proposing an
ecologically optimum design and then considering more practical
alternatives. The answer is that the optimum design is a crucially
important baseline (the best we can possibly do) that allows decision
makers to evaluate the ecological cost of a particular compromise.
Recommended Citation Format:
For those who wish to cite this extension, the author recommends something similar to:
Jenness, J., D. Majka and P. Beier. Corridor Designer
Evaluation Tools: Extension for ArcGIS.
Jenness Enterprises. Available at:
http://www.jennessent.com/arcgis/corridor.htm
Current Citation List (from Google Scholar):
Requires: ArcGIS 9.1
or better (at any license level) or ArcGIS 10.

For detailed instructions on installation and
operation, view the on-line PDF version of
Corridor
Designer Evaluation Tools Manual


Revisions
Version 1.0
 | Build 1.4.762 (November 27, 2007)
 | Repaired bug in internal grid clipping function,
which caused an intermittent crash in both the Patch and Bottleneck
tools. |
|
 |
Build 1.4.763 (December 5, 2007)
 | Fixed a minor bug in which Bottleneck Analysis
table records did not have the correct record numbers. |
|
 | Build 1.4.766 (December 12, 2007)
 | Fixed a bug in the “Create Shapefiles” function
in which the tool would occasionally mistakenly state that the
specified folder is not a valid workspace, and then fail to create a
shapefile. The function will still return an error message if the
specified workspace is truly not a valid workspace. |
|
 | Build 1.4.769 (December 12, 2007)
 | Minor changes to code |
 | Updated manual |
|
Version 2.0
 | Build 2.1.627 (October 4, 2009)
 | Greatly expanded the Histogram tool to create visual histograms
and to add them to layout. |
 | Added Crosstab tool to allow for comparing bivariate datasets. |
 | Added a “Combine Regions” tool to show how many species corridors
or patches exist at any place on the landscape. |
 | Added a “Suggestions” button to “About” dialog, to allow users to
easily submit suggestions for new tools. |
|
 | Build 2.1.632 (March 15, 2010)
 | Repaired a bug in the Installation file, in which it would not
install on some Windows Vista / Windows 7 systems with an
“oleaut32.dll” error. |
 | Added a function to export data for analysis in Circuitscape. |
|
 | Build 2.1.637 (October 29, 2010)
 | Updated extension and installer to work in ArcGIS 10. |
|
 | Build 2.1.638 (November 10, 2010)
 | Repaired a bug that caused a rare error
triggering an invalid property value when the progress meter text
box had too much text in it. |
|
 | Version 2.1.639: (November 16, 2010)
 | Wrote a workaround for an ArcGIS 10 bug in which
the GX Dialog was unable to recognize a GRID filter, causing an
“ActiveX component can’t create object” error message. This error
would only appear in ArcGIS 10, and would always appear when the
user clicked a button to specify a new location to save a raster. |
|
 | Version 2.1.640: June 28, 2011
 | Modified code to prevent crashes with message
“Non-modal forms cannot be displayed in this host application from
an ActiveX DLL, ActiveX Control, or Property Page.” in ArcGIS 10. |
|
Version 3.0
 | Build 3.0.817 (January 12, 2014)
 | Added a function to calculate Bottleneck
Statistics in batch mode, where bottleneck parameters are read from
a table. This function includes an ancillary tool to check the
input table for problems. |
|
