NAME:  Surface Tools for Points, Lines and Polygons (v. 1.6b)   (Click Name to Download)

Online PDF Manual:

Aka:  surf_tools.avx

Last modified:  February 11, 2008

TOPICS:  ArcView 3.x, surface, area, length, slope, aspect, elevation, range, cumulative, ratio, point, line, polygon, GRID, TIN, clip, topography, profile, chart, view, analysis, tools,  3D Analyst, Spatial Analyst

AUTHOR: Jeff Jenness

Wildlife Biologist, GIS Analyst

Jenness Enterprises

3020 N. Schevene Blvd.

Flagstaff, AZ  86004
jeffj@jennessent.com

DESCRIPTION: This extension allows you to calculate various surface and topographic characteristics for points, lines or polygons in a theme:

Point Themes: Calculate the X- and Y-Coordinates, the Slope, Aspect and Elevation, and the surface area, flat area and (Surface Area)/(Flat Area) ratios within a circular area surrounding each point.  Also calculate the minimum, maximum, mean and standard deviation of elevation values, and identify the high and low points, in that circular area.
Line (or Polyline) Themes: Calculate the surface length, the flat length, and the (Surface Length)/(Flat Length) ratio of each line, the minimum slope, maximum slope and average slope of that line, and the start, end, minimum, maximum and average elevation, elevation range and absolute/cumulative elevation change of that line. You can also create a profile chart of the elevation change of the line, and generate a point shapefile of the high and low points on that line.
Polygon Themes: Calculate the surface area within polygons, the flat area and the (Surface Area)/(Flat Area) ratios within polygons. You can also calculate the surface area and the land volume within each polygon that lies above and below a specified elevation. Finally, you can calculate the highest elevation, the lowest elevation, and the elevation range, mean and standard deviation within each polygon, and you can generate a shapefile of the high and low points within that polygon.

GRID or TIN Elevation Theme:  You can use either a GRID or TIN as your elevation theme. If you use a GRID, then this extension will create a TIN of the relevant area and calculate surface and topographic data from the new TIN.

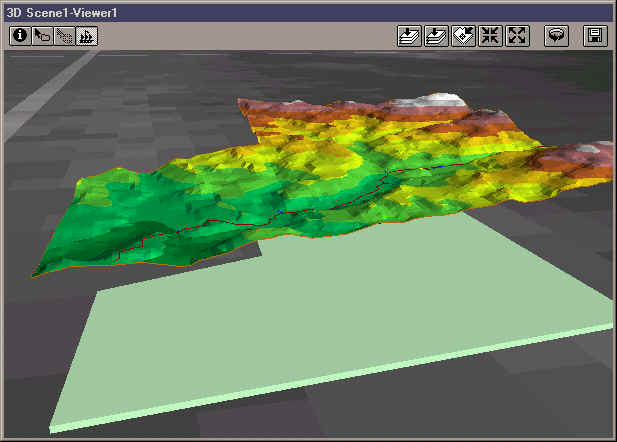

Save TINs and Clip TINs:  Because this extension uses TINs to calculate most surface and topographic data, it will either use an existing TIN or it will create a new TIN out of an existing elevation GRID.  It then  clips the TIN to the relevant area and gives you the option to both save these clipped TINs to your hard  drive and display them on your screen.  Therefore, even if you are not interested in the surface or topographic characteristics of your features, you may still find this extension to be a useful tool for clipping TINs to polygon boundaries.  CAUTION: A clipped TIN may not be exactly what you think it is.  See Clipping TINs for an explanation of what happens when a TIN is clipped.

Multipart Polygons and Polygons with Holes:  This extension works with both multipart polygons (a "single" polygon shape that actually contains multiple polygons), and polygons with holes.  Your TINs and your surface/topographic calculations will reflect the correct polygon.

All or Only Selected Records:  You can either use all the features (points, lines or polygons) in a theme for the analysis or you can restrict the calculations to a selected subset of features. If any of your features are selected, then only those selected features will be used in the analysis. If no features are selected, then all features in that theme will be used in the analysis.

Output:  Upon completion, you will have a RESULTS table containing any or all of the data mentioned above.  Please see the links below to view explanations of data available for Point, Line or Polygon Input Themes.  You also have the option to create a Point shapefile containing the high and low points near your points, along your lines or within your polygons.  If you are working with a Line (or Polyline) theme, you have the option to create a profile chart of the lines.

Requires:  This extension requires the Spatial Analyst and 3D Analyst extensions, as well as a feature theme and an elevation theme. The elevation theme can be either a GRID or a TIN, but it must completely encompass the features. This extension also requires that the file "avdlog.dll" be present in the ArcView/BIN32 directory (or $AVBIN/avdlog.dll) and that the Dialog Designer extension be located in your ArcView/ext32 directory, which they usually are if you're running AV 3.1 or better. The Dialog Designer doesn't have to be loaded; it just has to be available. If you are running AV 3.0a, you can download the appropriate files for free from ESRI at:

http://support.esri.com/index.cfm?fa=downloads.patchesServicePacks.viewPatch&PID=25&MetaID=483

Updates:  This extension replaces the extension called "Surface Areas and Ratios." This extension duplicates all functions in "Surface Areas and Ratios" and adds many new functions.

- The 1.1 update adds functionality for PointZ, PolylineZ and PolygonZ feature types, and fixes a file-naming error that occurred intermittently when the user chose not to save TINs to the hard drive.

- The 1.2 update corrects a logical error made when calculating average slopes, adds the ability to calculate slopes in both %-Slope (or Gradient) and Degrees, and adds the ability to save circles around points as a separate polygon shapefile.

- The 1.3 update corrects an error with Average Slopes of Lines, in which it wasn't including the first vertex of the line in the Average Slope calculations. The author thanks Ulrich Kollmeier for his observations and help in identifying these errors.

- The 1.3a update corrects corrects an error calculating planimetric area when the reference surface dips below 0.

- The 1.4 update (December 13, 2003) fixes a bug that occasionally triggered an error with the message "SurfaceTools.SurfaceRatio: Unrecognized object: TIN at 37137”.

- The 1.4 revision also adds several tools to the Line Profile window to make it more useful and interesting, allowing the user to customize many aspects of the chart including the vertical exaggeration factor. The revision also adds options to the Polylines window to calculate the beginning and ending elevations of lines, plus whether the line goes predominately up or down.

- The 1.4a revision (January 13, 2004) corrects a bug with the “Buffer Factor Help” button, in which it would return the error message “Error in SurfaceTools.BufferHelp2 at 214 -- A(n) Nil object does not recognize request Open” if accessed from the Polyline or Polygon windows.

- The 1.5 revision (May 11, 2004) adds the options to calculate the elevation mean and standard deviation within polygons and circular areas around points, and to calculate the absolute elevation change of polylines.  Also made some internal changes to speed up the calculation time when identifying high/low points, and to clean up some of the temporary files that previously were left on the hard drive.

- The 1.6 revision (February 13, 2005) adds the options to calculate cumulative increases and decreases along polylines, as well as rewrites certain functions to stop it from crashing on ArcView 3.1.

- The 1.6a revision (May 5, 2006) adds functions to check scripts for errors, and slightly modifies some of the dialogs.

- The 1.6b revision (February 11, 2008) fixes a bug in which multiple coincident extreme points were generated (i.e. several Lowest Points, all at the same location). Now only one point feature will be generated for each unique location.

Recommended Citation Format: For those who wish to cite this extension, the author recommends something similar to:

Jenness, J. 2008. Surface Tools (surf_tools.avx) extension for ArcView 3.x, v. 1.6a. Jenness Enterprises. Available at: http://www.jennessent.com/arcview/surface_tools.htm.

Please let me know if you cite this extension in a publication (jeffj@jennessent.com). I will update the citation list to include any publications that I am told about.

General Instructions:

1)  Begin by placing the "surf_tools.avx" file into the ArcView extensions directory (../../Av_gis30/Arcview/ext32/).

2)  After starting ArcView, load the extension by clicking on File --> Extensions… , scrolling down through the list of available extensions, and then clicking on the checkbox next to the extension called "Surface Tools for Points, Lines and Polygons"

3)  Decide which feature theme contains the features (points, lines or polygons) you’re interested in, and if you want to run this extension on all those features or just a subset of them.  If you want to just use a subset of the features, then select those features you’re interested in.  If any features are selected, then the extension will operate on only those selected features.

See the manual Surface_Tools_Manual.zip (in Adobe Acrobat format) for detailed operating instructions.

View Online PDF Manual:

Enjoy! Please contact the author if you have problems or find bugs.

            Jeff Jenness                                      jeffj@jennessent.com

            Jenness Enterprises                          http://www.jennessent.com

            3020 N. Schevene Blvd.                     (928) 607-4638

            Flagstaff, AZ  86004

                        USA
